AF-3D-S
| ITEM | PART NO. | DESCRIPTION | QTY |
|---|---|---|---|
| 1 | CABINET ASSEMBLY AFC-3D-S | CABINET ASSEMBLY AFC-3D-S | 1 |
| 1.1 | 085-6195 | FRAME, AFB, AFB-C & 3DS SERIES | 1 |
| 1.2 | 099-1003 | BULLET FOOT, METAL (1 1/4") | 4 |
| 1.3 | 085-6196 | PAN, AFB, AFB-C & 3DS SERIES | 1 |
| 1.4 | 087-6326 | BRACE "FRAME", (SUMP SUPPORT) | 1 |
| 1.5 | 051-8001 | SCRAP ACCUMULATOR, COMPLETE, 3D-S SERIES | 1 |
| 1.5.1 | 089-9096 | SCRAP TRAP, 3DS SERIES (W/O TRAY OR LID) BOX ONLY | 1 |
| 1.5.2 | 089-9090 | LID,COVER, SCRAP ACCUMULATOR 3D-S | 1 |
| 1.5.3 | 089-9078N | TRAY, SCRAP ACCUMULATOR, PLASTIC, 3D-S & 5AG ES SERIES & WS2 | 1 |
| 1.6 | 384-6118 | SPACER, BUSHING, 3D, 3DS, "L" (2 & 3 DOOR UP) | 2 |
| 1.7 | 085-6197 | HOOD, AF-3D-S & AFC-3D-S, AF-ES & AFC-ES | 1 |
| 1.8 | 087-6114 | DOOR GUIDE, SS, MODEL 3D-S, ES, 5AG-S & L-3DW-S | 4 |
| 1.9 | 087-6116 | DOOR, AF-3D-S/AFC-3D-S | 2 |
| 1.10 | 087-6115 | DOOR, DUMMY, 3D-S SERIES | 1 |
| 1.11 | 083-6108 | DOOR STRIP, CLEAR, 25", 3DS, ES, 5CD, L SERIES & HT-25 R | 4 |
| 1.12 | 087-6701 | BRACE, DOOR, ALL CORNER MACHINES | 2 |
| 1.13 | 086-6701BK | DOOR STOP | 2 |
| 1.14 | 084-6702 | SPACER, DOOR | 2 |
| 1.15 | 084-6701 | BUSHING (DOWEL), 5/8" | 2 |
| 1.16 | 085-6223 | TRAY TRACK, "3 & 2 DOOR UP" COMPLETE, 3DS, ES & LWS | 1 |
| 1.16.1 | 085-6146 | TRAY TRACK, 3D, 3D-S, ES, L, AFB LESS CONVERSION BAR | 1 |
| 1.16.2 | 086-6683 | TRAY TRACK CONVERSION, ALL 3DS, ES, LW INCLUDING 3 DOOR UP | 1 |
| 1.16.3 | 098-1423 | BOLT, 1/4"-20 X 1/2" HH | 2 |
| 1.16.4 | 098-2416 | WASHER, 1/4" FLAT, SS | 2 |
| 1.16.5 | 098-2507 | NUT, LOCK, 1/4-20 W/ NYLON INSERT | 2 |
| 1.17 | 098-1414 | SCREW, 1/4-20 X 1/2" TRUSS H | 25 |
| 1.18 | 098-2416 | WASHER, 1/4" FLAT, SS | 63 |
| 1.19 | 098-2507 | NUT, LOCK, 1/4-20 W/ NYLON INSERT | 58 |
| 1.20 | 098-1423 | BOLT, 1/4"-20 X 1/2" HH | 26 |
| 1.21 | 098-1426 | BOLT, 1/4-20 X 3/4" HH | 4 |
| 1.22 | 098-1436 | BOLT, 1/4-20 X 1 1/8" TH, SS | 2 |
| 1.23 | 098-2404 | WASHER, 1/4" SS FLAT (LARGE) | 4 |
| 1.24 | 098-1434 | BOLT, 1/4-20 X 2" HH | 3 |
| 1.25 | 098-2405 | NUT, CAP, 1/4-20 SELF-LOCK | 2 |
| 1.26 | 089-9308 | DECAL, WATER LEVEL | 1 |
| 1.27 | 081-6303 | LEG EXTENSION ASSEMBLY, 4" W/BULLET FOOT N | |
| 1.28 | 081-6304 | LEG EXTENSION ASSEMBLY, 6" W/BULLET FOOT N | |
| 1.29 | 292-1028 | NO-HUB, 2" PIPE TO PIPE | 1 |
| 2 | CHEMICAL FEEDER ASSEMBLY AF_AFC 3D S | CHEMICAL FEEDER ASSEMBLY AF_AFC 3D S | 1 |
| 2.1 | 086-6746 | BRACKET, CHEMICAL DISCHARGE 3DS W/CORNER SUPPORT | 1 |
| 2.2 | 091-4157 | NUT, THREADED RED, TUBE STIFFENER | 1 |
| 2.3 | 091-4158 | NUT, THREADED BLUE, TUBE STIFFENER | 1 |
| 2.4 | 091-4159 | NUT, THREADED GREEN, TUBE STIFFENERS | 1 |
| 2.5 | 091-4160 | FITTING, CHEMICAL DISCHARGE BRACKET | 3 |
| 3 | DRAIN SYSTEM ASSEMBLY AF_AFC-3DS | DRAIN SYSTEM ASSEMBLY AF/AFC-3DS | 1 |
| 3.1 | 086-6622 | BASE, DRAIN SOLENOID, 3D-SERIES | 1 |
| 3.2 | 091-2014 | SOLENOID, DRAIN, 110 VOLT (MAY 2018) R | 1 |
| 3.3 | 086-6605 | LINK, DRAIN SOLENOID (OUTSIDE SUMP) | 1 |
| 3.4 | 086-6607 | LARGE SLOTTED WASHER | 1 |
| 3.5 | 098-3001 | SPRING, DRAIN SOLENOID "OUTSIDE" | 1 |
| 3.6 | 086-6606 | WASHER SLOTTED, SMALL | 1 |
| 3.7 | 089-6610 | CHAIN, DRAIN PRE-CUT (3D-S SERIES 9 1/4" LONG) | 1 |
| 3.8 | 084-6622 | COVER, CHAIN, VINYL FOR 3D-S SERIES | 1 |
| 3.9 | 081-6601 | DRAIN TUBE ASSY., BALL & TUBE, OUTSIDE | 1 |
| 3.9.1 | 084-6608 | DRAIN TUBE, OUTSIDE SUMP | 1 |
| 3.9.2 | 083-6601 | DRAIN BALL, 1 1/2"(STANDARD IN ADS LINE) C | 1 |
| 3.10 | 085-6612 | COVER, DRAIN SOLENOID, AFC/3-D | 1 |
| 3.11 | 086-6644 | BRACKET, SOLENOID BASE MOUNTING LH, 3D-S & ES SERIES | 1 |
| 3.12 | 085-6650 | SOLENOID MOUNTING BRACKET, RH, 3DS | 1 |
| 3.13 | 092-1029 | FITTING, PLUMB. 1/2" X 3/8" REDUCER, SS | 1 |
| 3.14 | 091-4144 | CONDUIT NUT, LOCK | 1 |
| 3.15 | 092-1030 | FITTING, PLUMB. 3/8"COMPX1/2" FPT 90 ELBOW | 1 |
| 3.16 | 086-6646 | TUBE "DRAIN", CONDUIT, "3D-S & ES SERIES" | 1 |
| 3.17 | 085-6602 | SCREEN, DRAIN R | 1 |
| 3.18 | 085-6204 | DRAIN CASTING, W/ TAIL PIECE, 3D-S & ES SERIES, 5AG-S, 5AG-E | 1 |
| 3.19 | 089-6601 | GASKET, DRAIN CASTING SUMP R | 1 |
| 3.20 | 085-6160 | SCREEN, DRAIN SECONDARY, "L" & "ES" SERIES (TO PROTECT THE P | 1 |
| 3.21 | 098-9028 | WASHER, SECONDARY SCREEN - FLAT RUBBER L/3D-S & ES SERIES | 1 |
| 3.22 | 098-2416 | WASHER, 1/4" FLAT, SS | 7 |
| 3.23 | 098-2507 | NUT, LOCK, 1/4-20 W/ NYLON INSERT | 5 |
| 3.24 | 292-1012 | PLUG, PIPE, 1/2" MPT, SS, SQUARE HEAD | 1 |
| 3.25 | 099-1001 | GAUGE, TEMPERATURE, NO CAPILLARY, LF R | 1 |
| 3.26 | 089-6602 | GASKET, DRAIN TEE & DRAIN ELBOW | 1 |
| 3.27 | 082-6330 | DRAIN ELBOW, INTEGRATED DRAIN SEAT, UNIVERSAL | 1 |
| 3.28 | 086-6615 | BRACKET, WATER FIN, OUTSIDE SUMP | 2 |
| 3.29 | 098-1306 | SCREW, 10-32 X 1/2" HH | 4 |
| 3.30 | 098-2301 | NUT, LOCK, 10-32 | 5 |
| 3.31 | 098-1205 | SCREW, 8-32 5/8" RH SLOTTED | 2 |
| 3.32 | 098-2201 | NUT, LOCK, 8-32 HEX W/ NYLON INSERT | 2 |
| 3.33 | 098-1311 | SCREW, 10-38 X 1 3/8" RH SS | 1 |
| 3.34 | 098-1423 | BOLT, 1/4"-20 X 1/2" HH | 10 |
| 3.35 | 098-1424 | BOLT, 1/4-20 X 3/8" HH | 2 |
| 3.36 | 098-1502 | BOLT, 5/16-18 X 1/2" HH | 6 |
| 3.37 | 093-1012 | COVER, CHAIN-VINYL | |
| 3.38 | 098-9001 | CHAIN, DRAIN, SS, BY THE FOOT | |
| 4 | CONTROL SYSTEM ASSEMBLY AF_AFC 3DS | CONTROL SYSTEM ASSEMBLY AFC-3D-S | 1 |
| 4.1 | 081-6422 | CONTROL BOX, 3DS, AF-ES, 5AG-ES, 5CD-LF, BOTTOM & SIDES ONLY | 1 |
| 4.1.1 | 085-6637 | CONTROL BOX WELDMENT, 5AG-S | 1 |
| 4.1.2 | 087-6431 | CONTROL BOX END PANEL, LEFT SIDE | 1 |
| 4.1.3 | 087-6430 | CONTROL BOX END PANEL, RIGHT SIDE | 1 |
| 4.1.4 | 086-6677 | BRACKET, SUPPORT, CONTROL BOX SHELF | 2 |
| 4.1.5 | 098-2201 | NUT, LOCK, 8-32 HEX W/ NYLON INSERT | 8 |
| 4.1.6 | 098-1204 | SCREW, 8-32 X 1/2" RH SLOTTED | 8 |
| 4.2 | 086-6678 | HINGE, CONTROL BOX SHELF | 4 |
| 4.3 | 064-0010 | CHEMICAL PUMP (EXTERNAL - 50 RPM) R | 3 |
| 4.3.1 | 091-1002 | MOTOR, CHEM PUMP, 50 RPM R | 1 |
| 4.3.2 | 083-6703 | HOUSING, CHEM. PUMP (EXTERNAL) R | 1 |
| 4.3.3 | 067-6702 | ROTOR ASSY., CHEM. PUMP (EXTERNAL), 3DS, ES, L SERIES R | 1 |
| 4.3.4 | 083-6708 | BUSHING, CHEM. PUMP (EXTERNAL) R | 1 |
| 4.3.5 | 087-6700N | TUBE, SQUEEZE, NORPRENE, "CREAM" N | 1 |
| 4.3.6 | 083-6707 | COVER, CHEM. PUMP (EXTERNAL) R | 1 |
| 4.3.7 | 098-1606 | CLAMP, TUBE | 2 |
| 4.3.8 | 098-1305 | SCREW, 10-32 X 1 1/2" RH | 2 |
| 4.3.9 | 098-1321 | 10-32 X 1.75IN RH SLOTTED | 1 |
| 4.3.10 | 098-1204 | SCREW, 8-32 X 1/2" RH SLOTTED | 3 |
| 4.3.11 | 091-5223 | HOUSING, WIRING, MOLEX MALE | 2 |
| 4.3.12 | 091-5224 | PIN, WIRING, MOLEX CONNECTOR MALE | 2 |
| 4.3.13 | 098-1322 | SCREW, 10-32 X 1/4" SOCKET HEAD SET | 1 |
| 4.4 | 091-3009 | SWITCH, PRIME & DRAIN, MOMENTARY R | 3 |
| 4.5 | 091-3002 | SWITCH, RED START R | 1 |
| 4.6 | 091-3001 | SWITCH, BLACK FILL R | 1 |
| 4.7 | 091-7006 | PANEL LIGHT WITH WIRE LEADS | 1 |
| 4.8 | 086-6317 | HANDLE, CONTROL BOX UPPER SHELF | 1 |
| 4.9 | 091-3008 | SWITCH, MASTER (MAIN POWER) R | 1 |
| 4.10 | 087-6433 | COVER, CONTROL BOX, ES, 3DS, 5AG-S, 5CD & L-3DW-S | 1 |
| 4.11 | 096-1002 | LOCK, CONTROL BOX W/ KEYS (251) | 1 |
| 4.12 | 086-6676 | LATCH, CONTROL BOX SHELF SAFETY | 1 |
| 4.13 | 098-9020 | PLUG,.875IN PLASTIC | 3 |
| 4.14 | 091-4141 | CONDUIT FITTING, 1/2", STRAIGHT | 3 |
| 4.15 | 091-4016 | BOX, JUNCTION, 5AG-S, 5AG-ES & 5CD | 1 |
| 4.16 | 091-4144 | CONDUIT NUT, LOCK | 3 |
| 4.17 | 292-3003 | NIPPLE, 1/2" X CLOSE, SS N | 1 |
| 4.18 | 091-4004 | COVER, JUNCTION, AF, 3D, ES, 5AG-S, 5CD, ADC-44 & 66 | 1 |
| 4.19 | 089-9321 | DECAL, PRIME SWITCHES, 12" X 1 1/4" | 1 |
| 4.20 | 087-6435 | CONTROL BOX, UPPER SHELF, 3DS, 5AG-S, AF-ES, 5AG-ES, & 5CD | 1 |
| 4.21 | 092-1029 | FITTING, PLUMB. 1/2" X 3/8" REDUCER, SS | 1 |
| 4.22 | 092-1030 | FITTING, PLUMB. 3/8"COMPX1/2" FPT 90 ELBOW | 1 |
| 4.23 | 091-3060 | SWITCH, WASH EXTENDER, DELIME SWITCH | 1 |
| 4.24 | 099-1004 | KEY, TIMER ADJUSTMENT | 1 |
| 4.25 | 091-3049 | SWITCH, PRIME & DRAIN, MOMENTARY R | 1 |
| 4.26 | 091-3051 | TIMER (7 CAM), 90 SECOND (DWM) | 1 |
| 4.27 | 091-3083 | CONTACTOR, 40 AMP R | 1 |
| 4.28 | 091-4019 | GROMMET, SWITCH HOLE (CHEMICAL ALARM) | 2 |
| 4.29 | 091-3059 | RELAY, TIME DELAY, 110 VOLT, AUTO START SWITCH | 1 |
| 4.30 | 091-4017 | GROMMET, 1 5/16 ID | 1 |
| 4.31 | 091-4002 | GROMMET, 1/2 ID | 1 |
| 4.32 | 089-9226 | DECAL, TIMER CAM | 1 |
| 4.33 | 089-0077 | ADS NAME PLATE, PARTIALLY PRE-PRINTED | 1 |
| 4.34 | 089-9237 | DECAL, START-FILL | 1 |
| 4.35 | 098-1423 | BOLT, 1/4"-20 X 1/2" HH | 8 |
| 4.36 | 098-2507 | NUT, LOCK, 1/4-20 W/ NYLON INSERT | 9 |
| 4.37 | 098-2416 | WASHER, 1/4" FLAT, SS | 6 |
| 4.38 | 089-9201 | DECAL, WIRING DIAGRAM, AF, AFB, AFC, 3-D, L & ES SERI | 1 |
| 4.39 | 089-9227 | DECAL, TIMER CAM ADJUSTMENT, DMWS | 1 |
| 4.40 | 089-9706 | DECAL, CONTROL BOX, AF/AFC-3DS, ALL IN ONE | 1 |
| 4.41 | 089-9257 | DECAL, DELIMING | 1 |
| 4.42 | 099-4502 | SWITCH, DOOR CUT-OFF R | 1 |
| 4.43 | 086-6166 | BRACKET, DOOR CUT-OFF | 1 |
| 4.44 | 091-4142 | CONDUIT FITTING, 1/2", 90* ELBOW | 1 |
| 4.45 | 098-9011 | RIVET, 1/8" CLOSED END POP | 6 |
| 4.46 | 098-1204 | SCREW, 8-32 X 1/2" RH SLOTTED | 16 |
| 4.47 | 098-2202 | NUT, 8-32 HEX | 7 |
| 4.48 | 098-2921 | BOLT, 10-32 X 5/8" HH | 2 |
| 4.49 | 098-2301 | NUT, LOCK, 10-32 | 2 |
| 4.50 | 098-2201 | NUT, LOCK, 8-32 HEX W/ NYLON INSERT | 9 |
| 4.51 | 098-1102 | SCREW, 6-32 X ¼” RH SLOTTED SS | 4 |
| 4.52 | 098-2101 | NUT, 6-32 HEX | 2 |
| 4.53 | 098-1104 | SCREW, 6-32 X 1/2" RH | 2 |
| 4.54 | 098-2404 | WASHER, 1/4" SS FLAT (LARGE) | 1 |
| 4.55 | 098-9022 | PLUG, 3/8" PIPE (FITS 1/2" HOLE) | 3 |
| 4.56 | 098-1107 | SCREW, 4-40 X .25 ROUND HEAD SLOTTED SCREW | 4 |
| 4.57 | 098-2001 | NUT, LOCK, 4-40 | 4 |
| 4.58 | 098-1420 | SCREW, 1/4-20 X 1 1/4" TRUSS HEAD | 1 |
| 4.59 | 091-5033 | HARNESS, WIRING, ES & 3DS | 1 |
| 4.60 | 091-5156 | CONDUIT, 1/2" | |
| 4.61 | 093-1055PCL | TUBING, CHEMICAL LINE, 1/4" CLEAR POLYMER (15 FT PRE CUT) | 1 |
| 4.62 | 093-1055PCS | TUBING, CHEMICAL LINE, 1/4" CLEAR POLYMER (9 FT PRE CUT) | 1 |
| 4.63 | 093-1061PCL | TUBING, CHEMICAL LINE, 1/4" BLUE POLYMER (15 FT PRE CUT) | 1 |
| 4.64 | 093-1061PCS | TUBING, CHEMICAL LINE, 1/4" BLUE POLYMER (9 FT PRE CUT) | 1 |
| 4.65 | 093-1063PCL | TUBING, CHEMICAL LINE, 1/4" RED POLYMER (15FT PRE CUT) | 1 |
| 4.66 | 093-1063PCS | TUBING, CHEMICAL LINE, 1/4" RED POLYMER (9FT PRE CUT) | 1 |
| 4.67 | 093-1055FT | TUBE, CHEM. LINE, 1/4" CLEAR POLYMER (PER FOOT) | |
| 4.68 | 093-1055L | TUBE, CHEM. LINE, 1/4" CLEAR POLYMER (100 FT ROLL) | |
| 4.69 | 093-1055R | TUBE, CHEM. LINE, 1/4" CLEAR POLYMER (500 FT ROLL) | |
| 4.70 | 093-1061FT | TUBING, CHEMICAL LINE, 1/4" BLUE POLYMER (PER FOOT) N | |
| 4.71 | 093-1061L | TUBING, CHEMICAL LINE, 1/4" BLUE POLYMER (100 FT ROLL) N | |
| 4.72 | 093-1061R | TUBING, CHEMICAL LINE, 1/4" BLUE POLYMER (500 FT ROLL) N | |
| 4.73 | 093-1063FT | TUBING, CHEMICAL LINE, 1/4" RED POLYMER (PER FOOT) N | |
| 4.74 | 093-1063L | TUBING, CHEMICAL LINE, 1/4" RED POLYMER (100 FT ROLL) N | |
| 4.75 | 093-1063R | TUBING, CHEMICAL LINE, 1/4" RED POLYMER (500 FT ROLL) N | |
| 4.76 | 087-6700PK | TUBE, SQUEEZE, NORPRENE, 25 PACK | |
| 4.77 | 092-2000R | TUBE, SQUEEZE, NORPRENE, 50 FT ROLL | |
| 4.78 | 092-2000FT | TUBE, SQUEEZE, NORPRENE, "CREAM" (PER FOOT) N | |
| 5 | PLUMBING ASSEMBLY | PLUMBING ASSEMBLY | 1 |
| 5.1 | 092-1006 | FITTING, PLUMB. STREET "L" 1/2", "LF" | 1 |
| 5.2 | 092-5054 | VALVE, BALL 1/2", "LF" | 1 |
| 5.3 | 292-3003 | NIPPLE, 1/2" X CLOSE, SS N | 1 |
| 5.4 | 092-9001 | LINE STRAINER, 1/2" WYE TYPE | 1 |
| 5.5 | 092-9002 | SCREEN, LINE STRAINER, 1/2" Y TYPE N | 1 |
| 5.6 | 292-3014 | NIPPLE, 1/2" X 2" STAINLESS N | 1 |
| 5.7 | 092-5015 | VALVE, WATER SOLENOID 1/2" G R | 1 |
| 5.8 | 092-1062 | FITTING, PLUMB. 1/2" COMP. X 1/2" MPT, 90* ELBOW "LF" | 1 |
| 5.9 | 098-9027 | BOLT, 1/4" U (3D, ES, L-SERIES, ADC-44, & ADC-66) | 2 |
| 5.10 | 092-3118 | TUBE, FRESH WATER SUPPLY, 3DS & ES, AIR GAP | 1 |
| 5.11 | 086-6537 | BRACKET, MOUNTING, FRESH WATER, PLUMBING | 1 |
| 5.12 | 098-2507 | NUT, LOCK, 1/4-20 W/ NYLON INSERT | 10 |
| 5.13 | 389-6603 | GASKET, AIR GAP | 1 |
| 5.14 | 385-6124BK | ELBOW, AIR GAP OUTLET FLANGE | 1 |
| 5.15 | 385-6121BK | AIR GAP, HT-25 & 3DS, BRUKAR | 1 |
| 5.16 | 098-2416 | WASHER, 1/4" FLAT, SS | 6 |
| 5.17 | 098-1423 | BOLT, 1/4"-20 X 1/2" HH | 2 |
| 5.18 | 098-1426 | BOLT, 1/4-20 X 3/4" HH | 4 |
| 5.19 | 091-4141 | CONDUIT FITTING, 1/2", STRAIGHT | 1 |
| 5.20 | 092-5016 | KIT, WATER SOLENOID VALVE, J/E 1/2" | |
| 5.21 | 092-5025 | VALVE, WATER SOLENOID, LESS COIL 1/2" | |
| 5.22 | 092-5017 | COIL, WATER SOLENOID VALVE | |
| 5.23 | 091-5156 | CONDUIT, 1/2" | |
| 6 | RECIRCULATING PUMP ASSEMBLY AF_AFC 3D S | RECIRCULATING PUMP ASSEMBLY AF/AFC 3D S | 1 |
| 6.1 | 087-6375 | MOTOR MOUNT, AF-3D-S, 3" TALLER | 1 |
| 6.2 | 088-1102 | PUMP ASSY, WASH, SS, 1 1_2 HP LESS COVER 3D SERIES | 1 |
| 6.2.1 | 082-6323BK | REAR HOUSING, 1 1/2 HP PUMP, SS | 1 |

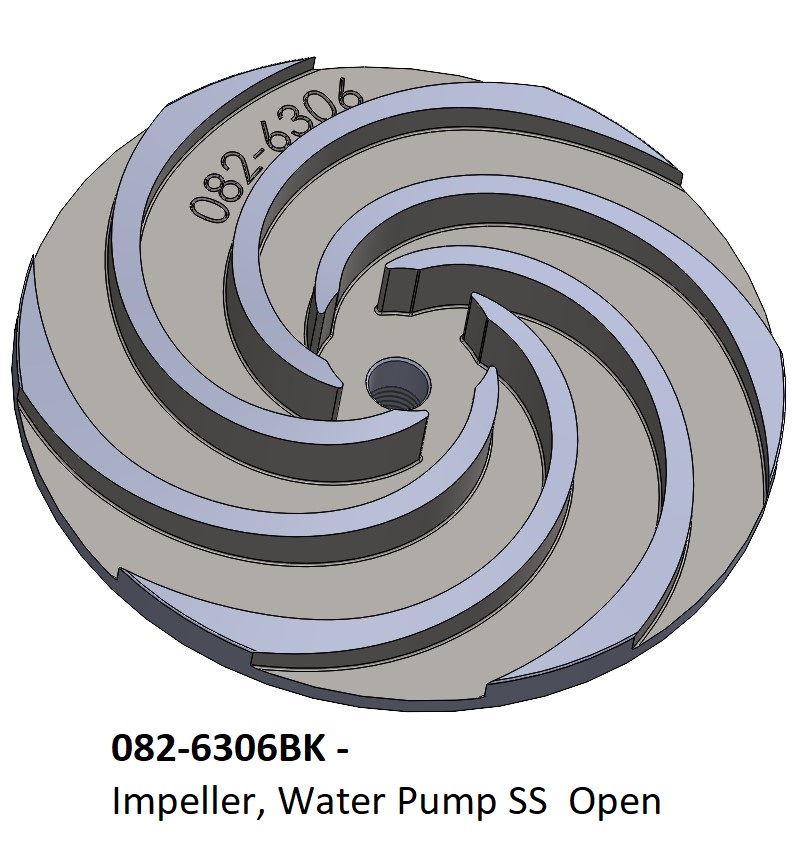

| 6.2.2 | 082-6325BK Alternate Part : 082-6306BK Part No : 082-6306BK Part Name : Impeller, Water Pump SS "Open"  | IMPELLER, 1 1/2 HP PUMP, SS | 1 |
| 6.2.3 | 091-1001 | MOTOR, WASH PUMP, 1 1/2 HP | 1 |
| 6.2.4 | 092-2001 | SEAL, WASH PUMP (DWMS) R | 1 |
| 6.2.5 | 098-1607 | BOLT, 3/8-16 X 7/8" HH | 4 |
| 6.3 | 085-6321BK | SUCTION PUMP PIPE | 1 |
| 6.4 | 085-6320 | SUCTION TUBE, 3D-S, AFB & AFB-C (INTAKE TUBE) | 1 |
| 6.5 | 093-1039 | KIT, SLEEVE - CLAMP SUCTION TUBE, LARGEST C | 2 |
| 6.5.1 | 093-1049 | SLEEVE ONLY, SUCTION TUBE (PART OF 093-1039) C | 1 |
| 6.5.2 | 098-9037 | CLAMP, SUCTION TUBE SLEEVE, MODEL 3DS, ES, 5AG-S, 5AG-ES | 2 |
| 6.6 | 082-6324BK | PUMP COVER, 1 1/2 HP PUMP, SS | 1 |
| 6.7 | 085-6198BK | TUBE, PUMP DISCHARGE, 3DS, AFB, & AFB-C | 1 |
| 6.8 | 093-1040 | KIT, SLEEVE - CLAMP DISCHARGE TUBE, MEDIUM C | 1 |
| 6.8.1 | 093-1048 | SLEEVE ONLY, DISCHARGE TUBE (PART OF 093-1040) C | 1 |
| 6.8.2 | 098-9024 | CLAMP, HOSE - SCREW TYPE 3/4" | 2 |
| 6.9 | 089-6309 | GASKET, O'RING, WATER PUMP, ES SERIES, L-SERIES & PRE-WASH A | 1 |
| 6.10 | 091-4142 | CONDUIT FITTING, 1/2", 90* ELBOW | 1 |
| 6.11 | 098-1426 | BOLT, 1/4-20 X 3/4" HH | 2 |
| 6.12 | 098-2416 | WASHER, 1/4" FLAT, SS | 4 |
| 6.13 | 098-2507 | NUT, LOCK, 1/4-20 W/ NYLON INSERT | 2 |
| 6.14 | 098-1507 | BOLT, 5/16-18 X 7/8" HH | 2 |
| 6.15 | 098-2503 | WASHER, COPPER 5/16" | 4 |
| 6.16 | 098-1510 | BOLT, 5/16-18 X 1 1/4" HH | 2 |
| 6.17 | 092-1145 | PLUG, PIPE 1/8", MPT, SS, HEX HEAD | 3 |
| 6.18 | 092-1144 | PLUG, PIPE 3/8", MPT, SS, HEX HEAD | 1 |
| 6.19 | 091-1029 | SWITCH, MOTOR 1 ½ & 1 HP, INTERNAL | |
| 7 | DOOR ACTUATOR ASSEMBLY AFC-3D-S | DOOR ACTUATOR ASSEMBLY AFC-3D-S | 1 |
| 7.1 | 085-6807 | BKT, LEVER ARM PIVOT, CORNER, SHORT_LH | 1 |
| 7.2 | 085-6808 | BKT, LEVER ARM PIVOT, CORNER, LONG_RH | 1 |
| 7.3 | 085-6725 | LEVER ARM, AFC-3D-S | 1 |
| 7.4 | 086-6702 | DOOR LINK STANDARD | 2 |
| 7.5 | 085-6721 | SPRING EXTENSION, CORNER - NEW R | 1 |
| 7.6 | 098-8006 | PIN, COTTER #25 (CORNER SPRING EXT.) | 1 |
| 7.7 | 084-6701 | BUSHING (DOWEL), 5/8" | 2 |
| 7.8 | 098-1434 | BOLT, 1/4-20 X 2" HH | 2 |
| 7.9 | 098-2404 | WASHER, 1/4" SS FLAT (LARGE) | 2 |
| 7.10 | 098-2405 | NUT, CAP, 1/4-20 SELF-LOCK | 2 |
| 7.11 | 098-2503 | WASHER, COPPER 5/16" | 1 |
| 7.12 | 086-6737 | SPRING EXTENSION, SECONDARY, 3D-S & 3D-S 3 DOOR UP (5" LONG) | 1 |
| 7.13 | 098-1581 | BOLT, EYE, 5/16-18 X 8 5/8" | 1 |
| 7.14 | 098-3011 | SPRING, DOOR CORNER MODELS (15" LONG) | 1 |
| 7.15 | 092-1086 | CAP, CORNER LEVER ARM, 1" | 2 |
| 7.16 | 098-1423 | BOLT, 1/4"-20 X 1/2" HH | 8 |
| 7.17 | 098-2416 | WASHER, 1/4" FLAT, SS | 8 |
| 7.18 | 098-2507 | NUT, LOCK, 1/4-20 W/ NYLON INSERT | 8 |
| 7.19 | 098-2502 | NUT, 5/16-18 HEX | 1 |
| 8 | SPRAY SYSTEM ASSEMBLY | SPRAY SYSTEM ASSEMBLY | 1 |

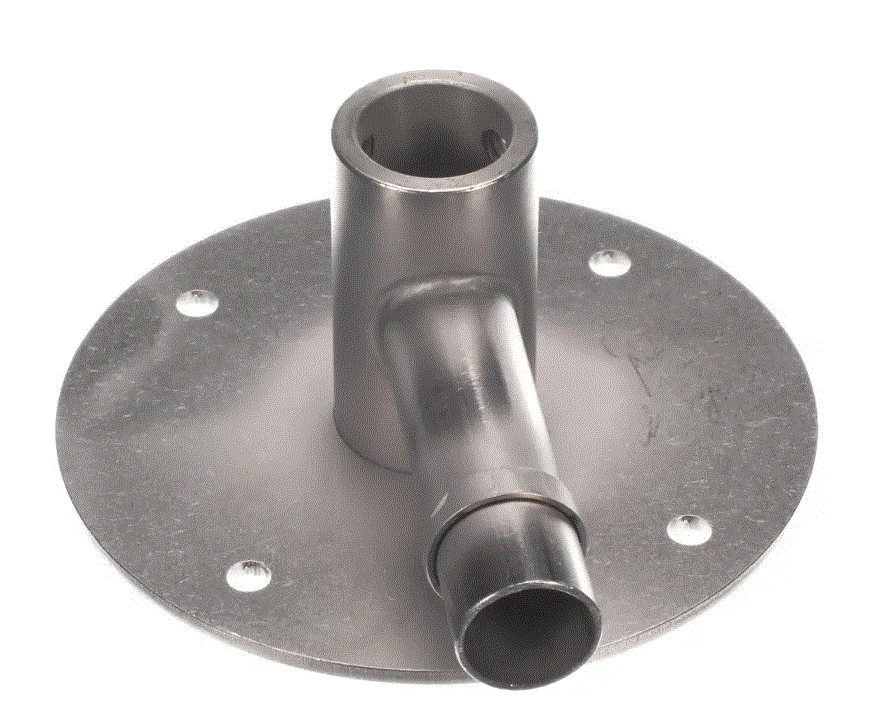

| 8.1 | 085-6626BK Alternate Part : 085-6628 Part No : 085-6628 Part Name : Base, Spray, Upper SS, 3D-S, ES & AFB (Thumb Screw Type)  | BASE, SPRAY, UPPER SS, BAYONET TYPE, INTEGRATED FLANGE | 1 |

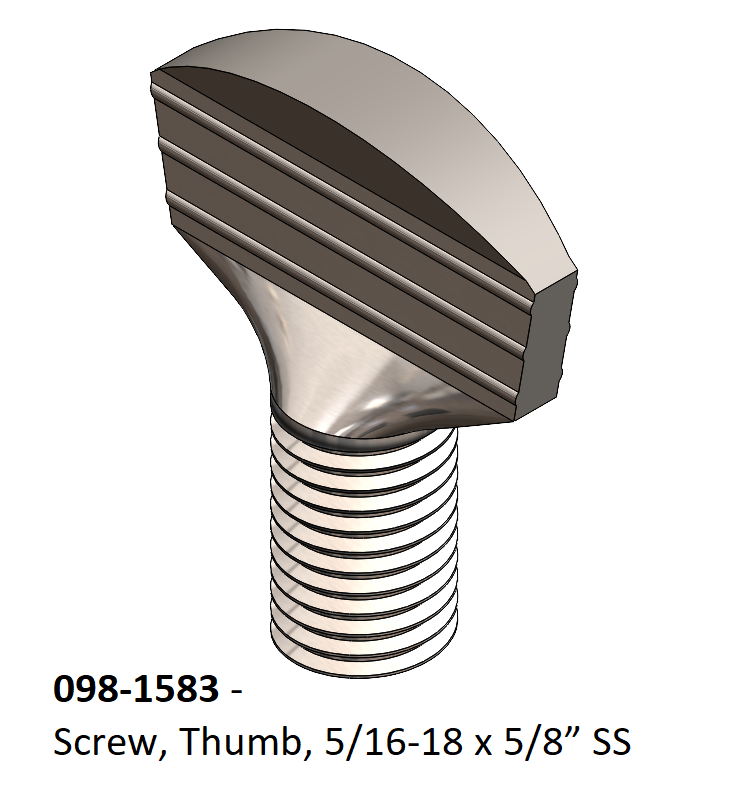

| 8.2 | 099-1028 Alternate Part : 098-1583 Part No : 098-1583 Part Name : Screw, Thumb, 5/16-18 X 5/8" SS  | BAYONET, SPRAY BASE PIN N | 4 |
| 8.3 | 081-6217BK | SPRAY ARM BEARING WITH O'RING, BRUKAR | 2 |
| 8.4 | 081-6211 | SPRAY ARM W/END PLUGS, 3DS, L, 22 7/8" - 6 JETS N | 2 |
| 8.4.1 | 085-6654 | SPRAY ARM WELDMENT, 3DS/LW | 1 |
| 8.4.2 | 084-6211 | SS END PLUG | 2 |

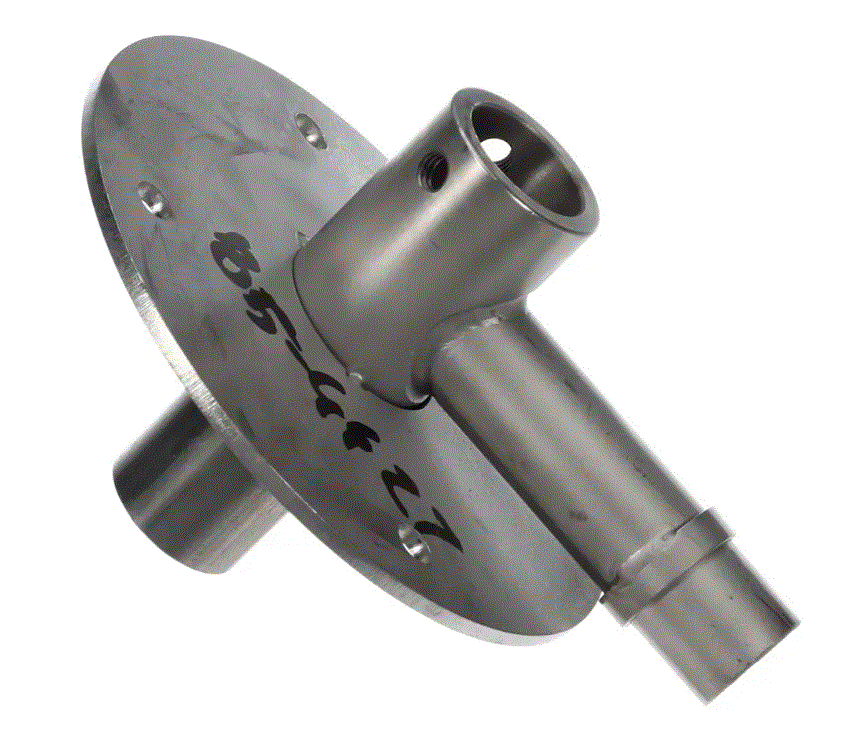

| 8.5 | 085-6625BK Alternate Part : 085-6627 Part No : 085-6627 Part Name : Base, Spray, Lower SS, 3D-S, & AFB (Thumb Screw Type)  | BASE, SPRAY, LOWER SS, BAYONET TYPE, INTEGRATED FLANGE | 1 |
| 8.6 | 087-6226 | MANIFOLD, AF-3D-S & AFC-3D-S | 1 |
| 8.7 | 093-1047 | SLEEVE ONLY, INSIDE MANIFOLD TUBE (PART OF 093-1041) C | 2 |
| 8.8 | 089-6201 | GASKET, SPRAY BASE | 1 |
| 8.9 | 098-2507 | NUT, LOCK, 1/4-20 W/ NYLON INSERT | 8 |
| 8.10 | 098-1426 | BOLT, 1/4-20 X 3/4" HH | 8 |
| 8.11 | 098-2416 | WASHER, 1/4" FLAT, SS | 4 |
| 8.12 | 081-6501 | CLAMP ASSEMBLY, INSIDE MANIFOLD (INCL. BOLTS & NUTS) | 2 |
| 8.12.1 | 085-6407 | CLAMP, INSIDE MANIFOLD, SS, WELDED CLAMP (ASSY SEE 081-6501) | 1 |
| 8.12.2 | 098-1445 | BOLT, 1/4-20 X 1", HH, SS | 2 |
| 8.12.3 | 098-2416 | WASHER, 1/4" FLAT, SS | 4 |
| 8.12.4 | 098-2507 | NUT, LOCK, 1/4-20 W/ NYLON INSERT | 2 |
| 8.13 | 089-6310 | O'RING, SPRAY ARM BEARING | 1 |
| 9 | 083-6450 | TUBE STIFFENER, THREADED, 5 GAL. | 3 |
| 10 | 091-4157 | NUT, THREADED RED, TUBE STIFFENER | 1 |
| 11 | 091-4158 | NUT, THREADED BLUE, TUBE STIFFENER | 1 |
| 12 | 091-4159 | NUT, THREADED GREEN, TUBE STIFFENERS | 1 |
| 13 | 089-9730 | DECAL SET, AF/AFC-3DS W/ALL IN ONE DECAL | 1 |
